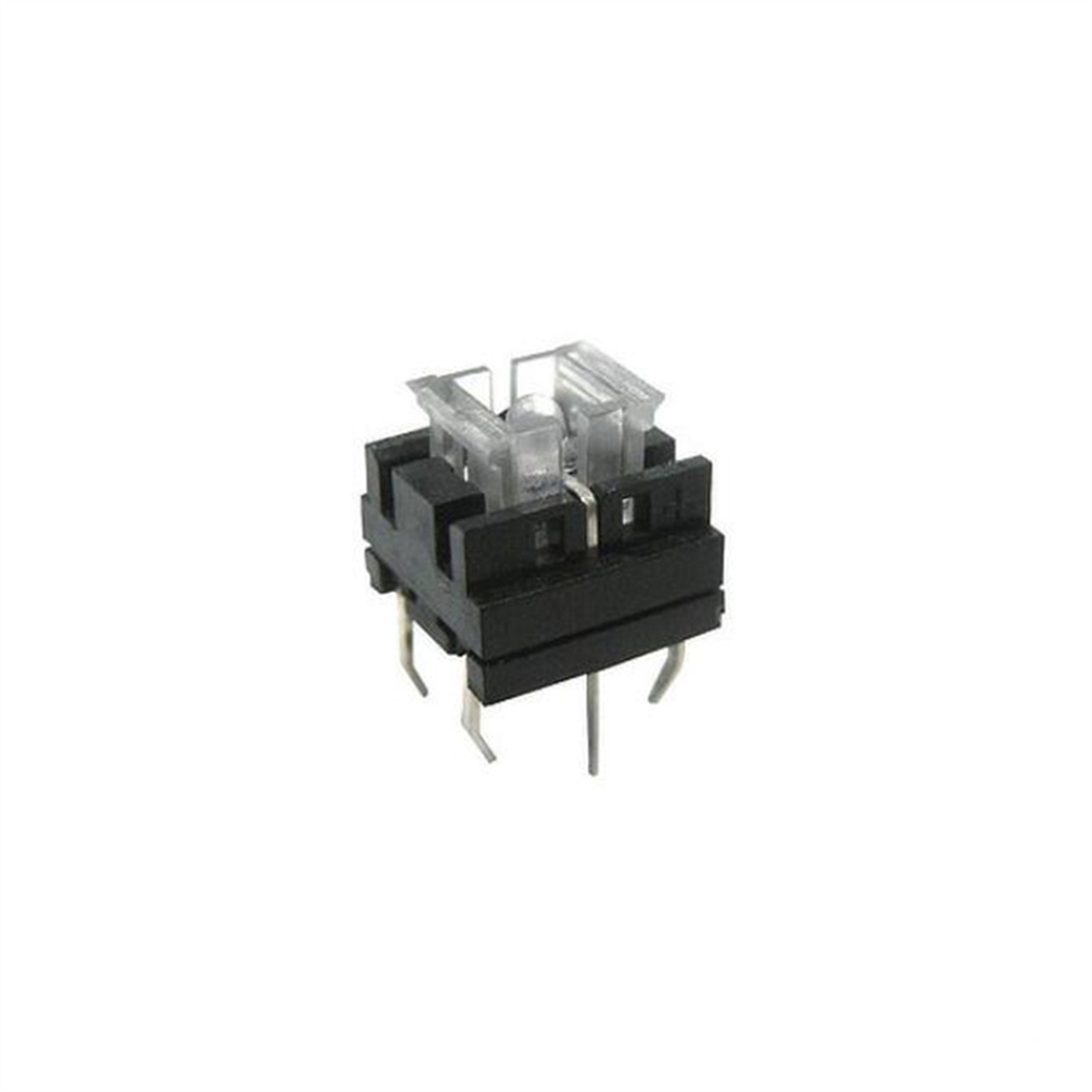

Createn Washable tact switch

Specification

CIRCUIT: SPST.

FUNCTION: Momentary.

CONATE RATING: 50 mA @ 12V DC.

OPERATING FORCE: 350 gf ±100gf.

TOTAL TRAVEL: 0.25mm ± 0.10mm.

MECHANICAL LIFE: 100, 000 make-and-break cycles.

CONTACT RESISTANCE: 100mΩ max. (initial)

INSULATION RESISTANCE: 100MΩ min.

DIELECTRIC STRENGTH: 250 V RMS @ sea level.

OPERATING TEMPERATURE: -25°C to70°C.


Materials

CASE: Glass filled Nylon 6/6(UL 94-V0).

HOUSING: Glass filled Nylon 6/6(UL 94-V0).

ACTUATOR: PC.

TERMINAL/CONTACT: Brass, Silver plated.


Applications

Home appliances, Computer peripherals, Telecommunications and Networking equipment.
