Createn 5SE series ultra-small waterproof slide switch

Createn 5SE series ultra-small waterproof slide switch

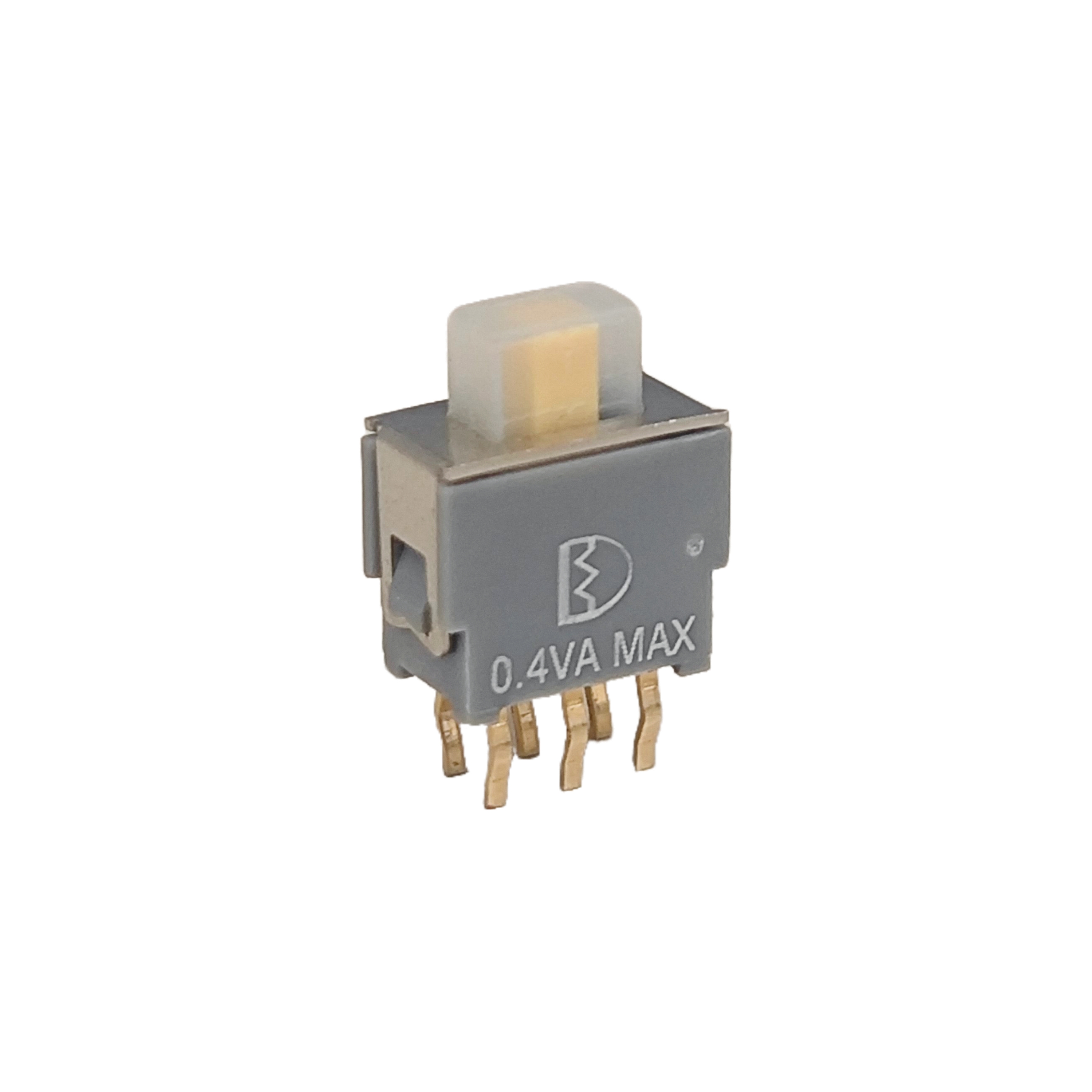

5SE series ultra-small waterproof sliding switch, the highest RATING can be used up to 0.4VA, SPDT, DPDT and other specifications, this model can be matched with a transparent waterproof cover to achieve better waterproof performance IP65, the terminal feet have PC feet, left and right toggle Bent feet and SMT feet

Inquiry Now

Specifications

CONTACT RATING: Dependent upon contact material.

MECHANICAL LIFE: 30, 000 make-and-break cycles.

CONTACT RESISTANCE: 10 mΩmax. initial @ 2-4VDC, 100mA for both silver and gold plated contacts.

INSULATION RESISTANCE: 1, 000 MΩmin.

DIELECTRIC STRENGTH: 1, 000 Vrms min.@ sea level.

OPERATING TEMPERATURE: -40°C to 85°C.


Application

Testing instruments/equipment, computer peripherals.

Communication and Netcom equipment.

Microphone, water heater.
