Createn 1 pole 2-8 position rotary switch

Createn 1 pole 2-8 position rotary switch

RT series rotary switches available in 1 pole with position 2 to position 8, and we offer more rotary switches for PCB or panel-mount applications. Miniature and subminiature designs save space on PCBs, while solder lug, PC thru-hole, wire lead, or quick connect terminations support a variety of mount options.

Inquiry Now

Rotary Switches

RT series rotary switches available in 1 pole with position 2 to position 8, and we offer more rotary switches for PCB or panel-mount applications. Miniature and subminiature designs save space on PCBs, while solder lug, PC thru-hole, wire lead, or quick connect terminations support a variety of mount options.



Applications of RT series rotary switches include communication equipments, intercom equipment, high value toy, power strip voltage selector, AV machine, video recorder, air cleaner.



SPECIFICATIONS

Pole-position: 1Pole, 2 Position~8 Position, (STOP LESS) are available.

Electrical rating: 0.5A 24V DC ; 0.2A 48V DC.

Contact resistance: 100mΩ Max.

Insulation resistance: 100MΩ min. 500V DC.

Dielectric strength: Breakdown is not allowable ; 500V AC for 1 minute.

Operating force: 350 ± 150g.

Operating life: 2,000 cycles.

Operating temperature range: - 20°C ~ 70°C.



MATERIALS

HOUSING : NYLON 6/6.

BASE : LCP.

ACTUATOR : NYLON 6/6.

TERMINAL : Brass gold plating.

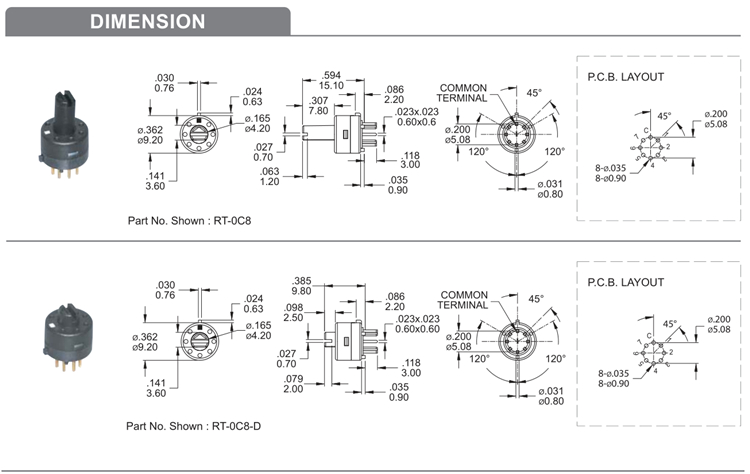

rotary switch.jpg
