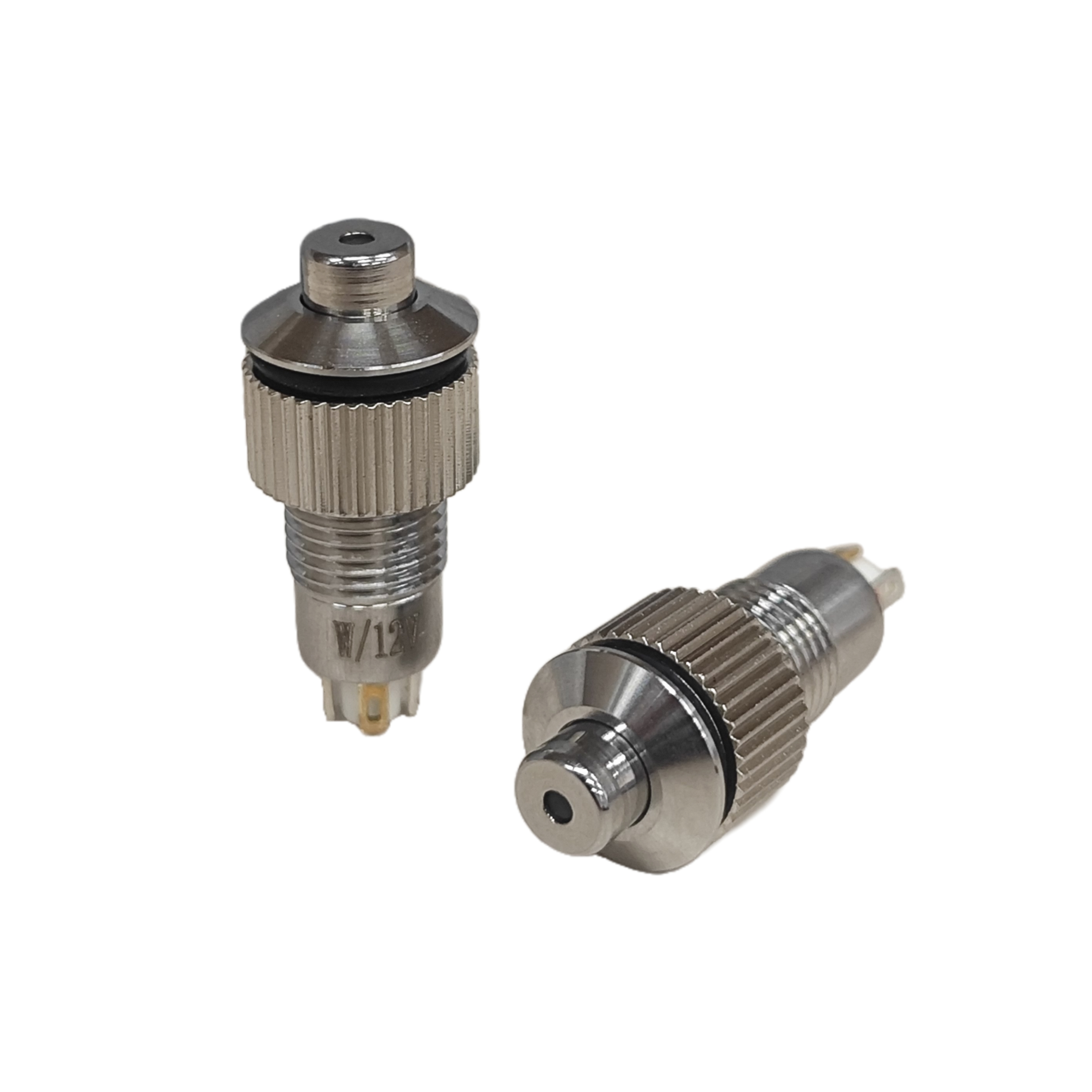

Createn 8mm Metal Push Button Switch, Self-Resetting & Locking, Illuminated, Normally Open, Waterproof, Solder Type Power Start Button

Operating Pressure:350+80gf
Operating Stroke:3.0+0.3mm
Protection Grade:TUV/lP67(above panel),lK08
Function:ON-OFF
Lamp Type:LED(White 3vDC)
Lamp Life:50000H
Led current:20mA Max
Rating (Resistive load):0.3A 12V DC/0.2A 24V DC
0.1A 36V DC
Contact Resistance:50mQ Max
Insulation Resistance:100MΩ Min
Dielectric Strength:1000V AC 1 minute
Electrical life:50,000 cycles
Mechanical life:100,000 cycles
Operating Temperature:-20°C-80°C
Relative Air Humidity:20%-85%
