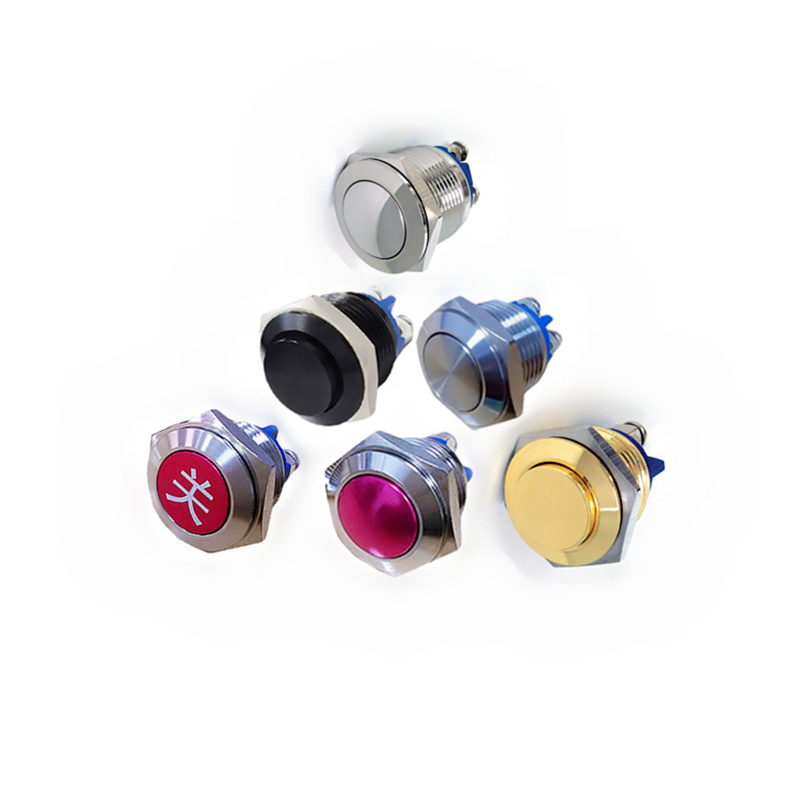

Createn 16mm Metal Switches(5A)

Createn 16mm Metal Switches(5A)

16mm metal push button switch, can withstand current 10A, actuate at 5A/250VAC, foolproof and anti-vibration structure, more suitable for use in harsh environments, and the switch color can be customized

Inquiry Now

SPECIFICATIONS

Panel Thickness: Ø16.20mm

Contact Rating: lth 5A/250VAC  resistive load 3A/250VAC
Mechanical Life: 200,000 cycles

Electrical Life: 50,000 make-and-break cycles at full load

Torque: 5~14Nm

Travel: About 2.0mm

Operation Pressure: 1.5±1N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 2,000 Vrms @sea level.
Operating Temperature: -20°C to 85°C



MATERIALS

BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy

BASE : PBT.

ACTUATOR : Stainless Steel / Nickel plated brass / Aluminum alloy

INNER ASSEMBLY : POM / PA66.

SPRING : Spring steel.

SEALING : Sillicone.

O-Ring : Sillicone

TERMINAL : Brass,with silver or gold plated.

HEX NUT : Nickel plated brass
