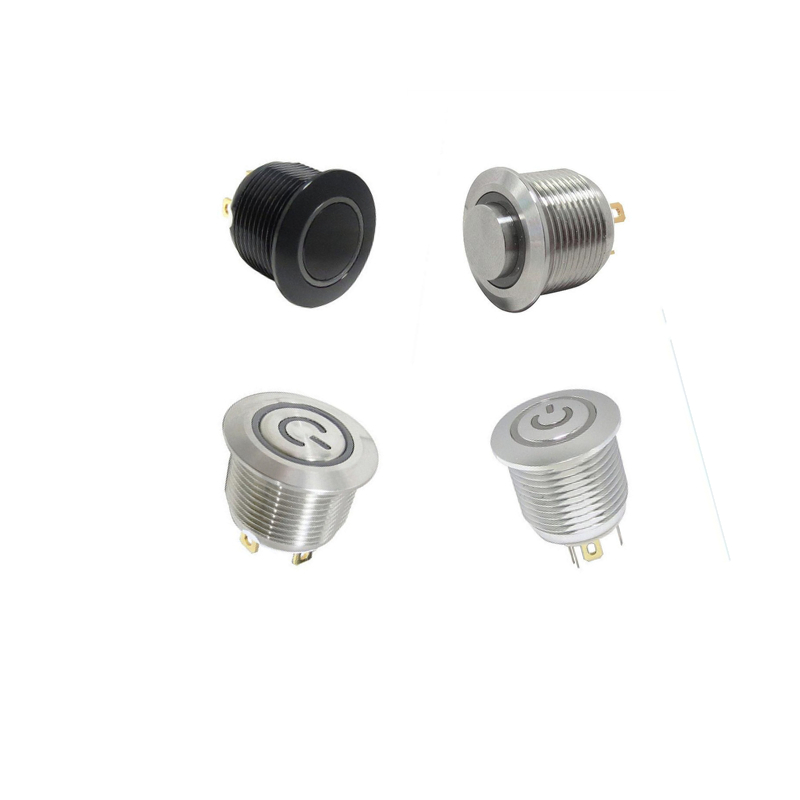

Createn 16mm momentary metal push button switch

Createn 16mm momentary metal push button switch

1. IP67 rated
2. UL cUL certificated
3. RoHS compliant
4. Lead free

Inquiry Now

Specification

RATING : 2A/ 36VDC. Min:0.5A/12VDC.

ELECTRICAL LIFE : 200, 000 make-and-break cycles at full load.

MECHANICAL LIFE : 1, 000, 000 cycles.

INSULATION RESISTANCE : 1, 000MΩ min, at 500VDC.

DIELECTRIC STRENGTH : 2, 000V RMS @ sea level.

CONTACT RESISTANCE : 50mΩ max.

OPERATION TEMPERATURE : -20°C~+70.

TRAVEL: About 2.0± 0.20mm.

OPERATION PRESSURE : 4.5N± 1.5N.

INGRESS PROTECTION : IP67.

TORQUE : 11.5 kgf.cm.

THICKNESS : 8.0mm(Max.)

Current limiting resistor is required to limit LED forward current to 20mA.


Materials

BUSHING : Aluminum alloy / Stanless Steel.

BASE : PBT (UL 94-V0).

ACTUATOR : PC (Translucent UL 94-V2).

CAP : Aluminum alloy / Stanless Steel.

SPRING : Steel.

SEALING : Sillicone (Translucent).

O-Ring : Sillicone (Translucent).

TERMINAL : Brass , Gold flash plated.

CONTACT : Silver alloy.

HEX NUT : Brass (Nickel plated).


Applications

Industrial control instruments, Medical equipment, Security monitoring equipment, Vehicle peripherals, Audio-visual equipment and Energy storage equipment.


TYPEFlat
Flat
Ring (fixed)
Ring (fixed)
Ring (moveable)
Ring (moveable)
Spot
Spot
Power logo
Power logo
High
High
spot
spot
Ring
Ring
Power logo
Power logo
Round
Round
ring
ring
power logo
power logo
power logo+ring
power logo+ring
MPB16








MPB19

MPB22









MPB25
