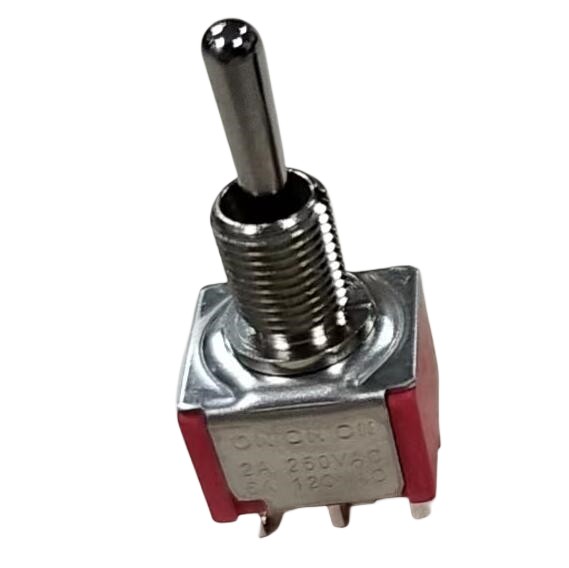

ON ON ON toggle switches

Specification

CONTACT RATING: Dependent upon contact material.

MECHANICAL LIFE: 30, 000 make-and-break cycles.

CONTACT RESISTANCE: 20 mΩmax. initial @ 2-4VDC, 100mA for both silver and gold plated contacts.

INSULATION RESISTANCE: 1, 000 MΩmin.

DIELECTRIC STRENGTH: 1, 000 Vrms min.@ sea level.

OPERATING TEMPERATURE: -40°C to 85°C.


Materials

CASE: Diallyl phthalate (DAP) (UL94v-0).

ACTUATOR: Brass, chrome plated.

BUSHING: Brass or zinc, nickel plated.

HOUSING: Stainless Steel.

SWITCH SUPPORT: Brass, tin plated.

TERMINAL/CONTACT: Brass or copper alloy, with Silver or gold plated.


Applications

Telecommunications, Instrumentation and Medical equipment.
