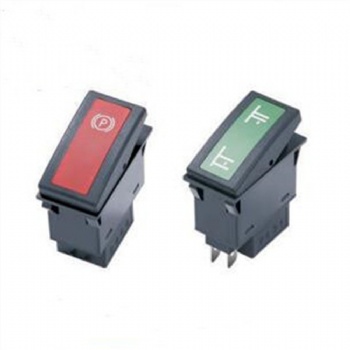

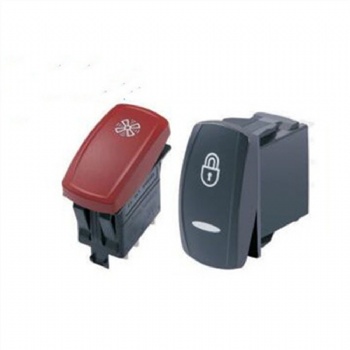

Small boat type switch, 10*15 lighted type that is rare in the industry.
Specification
Operating Types:Rocker Switches
Contact Rating:6A 125VAC 3A 250VAC
Contact Configuration: ON-OFF ON-OFF-ON ON-ON
Operating Temperature :-25℃ ~ +85℃(no freezing)
keep the air flowing around the illuminated pushbutton
Operating Humidity :45 ~ 85%RH(no condensation)
Mechanical Life:≥50,000 Cycles
Electrical Life: ≥10,000 Cycles
Contact Resistance :≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric Strength :1500 V, AC 50Hz
Vibration Resistance :50Hz,Amplitude 1.0mmp-p
MATERIALS
BUSHING : PA66
BASE : PA66
ACTUATOR : PC,PA66
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
TERMINAL : Brass,with silver or gold plated.
Application scenarios
