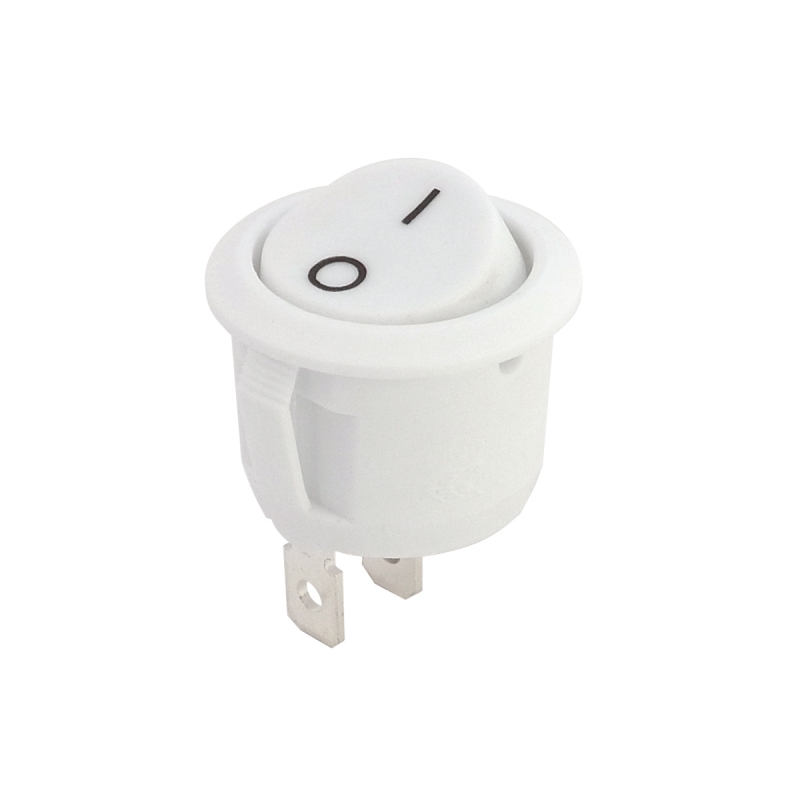

White round Rocker switch

Specification

Operating Types:Rocker Switches

Contact Rating:6A 125VAC  3A 250VAC

Contact Configuration: ON-OFF  ON-OFF-ON  ON-ON

Operating Temperature :-25℃ ~ +85℃(no freezing)

                                          keep the air flowing around the illuminated pushbutton

Operating Humidity :45 ~ 85%RH(no condensation)

Mechanical Life:≥50,000 Cycles

Electrical Life: ≥10,000 Cycles

Contact Resistance :≤50mΩ

Insulation Resistance:≥100MΩ

Dielectric Strength :1500 V, AC 50Hz

Vibration Resistance :50Hz,Amplitude 1.0mmp-p



MATERIALS

BUSHING : PA66

BASE : PA66

ACTUATOR : PC,PA66

INNER ASSEMBLY : POM / PA66.

SPRING : Spring steel.

TERMINAL : Brass,with silver or gold plated.
