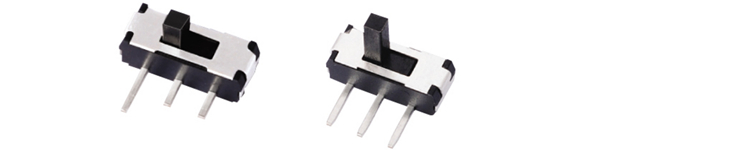

Micro current side dial switches

Slide Switches

SPECIFICATIONS

Feature: Horizontal Push

Contact Rating: 300mA . 4VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 70 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 V AC for 1 min.

Operating force: 120±50gf  2C-2P: 200±50gf

Travel:  1.5±0.2mm  2±0.2mm
Operating Temperature: -10°C to +70°C



Product Details

Application

Computer peripherals & network products

Telecommunication products

Test & measurement equipment



Feature

※Ultraminiature surface mount

Low profile of 1.5mm height

SPDT,SP3T,SP4T

Reflow solderable

RoHS compliant
