Createn Straight button tact switches

Createn Straight button tact switches

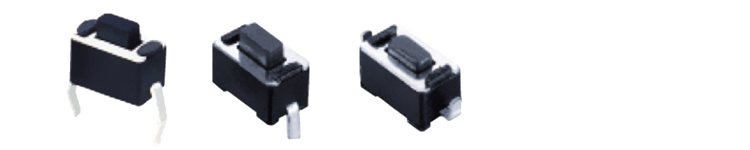

Tact Switch - Mini Type A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section.The switch is used to supply input signal to actuate a device or equipment.

Inquiry Now

Tact Switches

SPECIFICATIONS

Feature: Vertical Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C



Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.



Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices








SPECIFICATIONS

Size: 3.5x6mm

Travel:  0.25±0.1mm

Operation Force: 70gf;90gf;130gf;180gf;250gf;320gf









SPECIFICATIONS

Size: 3.8x6mm

Travel:  0.3±0.1mm

Operation Force: 90gf;180gf;250gf;









SPECIFICATIONS

Size: 3.7X6.3mm

Travel:  0.3±0.2mm

Operation Force: 180gf;210gf;250gf;







SPECIFICATIONS

Size: 3.7X6mm

Travel:  0.25±0.1mm

Operation Force: 70gf;90gf;130gf;180gf;250gf;320gf













SPECIFICATIONS

Size: 6.1X3.5mm

Travel:  0.25±0.1mm

Operation Force: 180gf;250gf;









SPECIFICATIONS

Size: 6X3.5mm

Travel:  0.25±0.1mm

Operation Force: 70gf;130gf;180gf;250gf;
