Tact Switch - Mini Type A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section.The switch is used to supply input signal to actuate a device or equipment.

Inquiry Now

Tact Switches

SPECIFICATIONS

Feature: Vertical Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C



Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.



Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices








SPECIFICATIONS

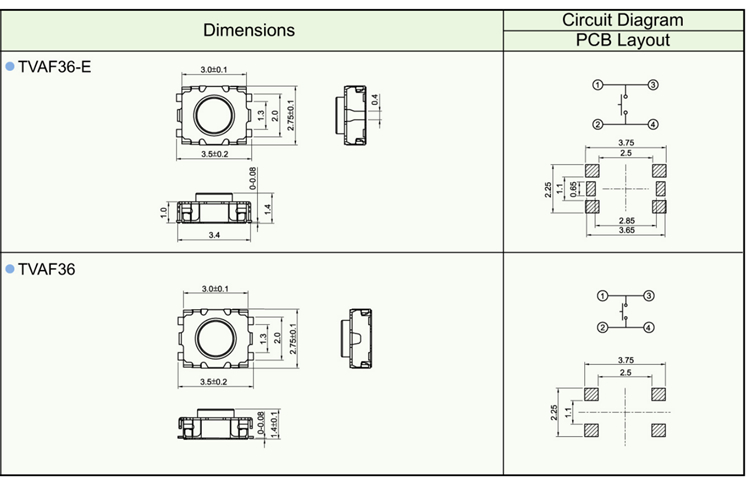

Size: 2.75x3mm

Travel:  0.12±0.1mm

Operation Force: 180gf;250gf;400gf











SPECIFICATIONS

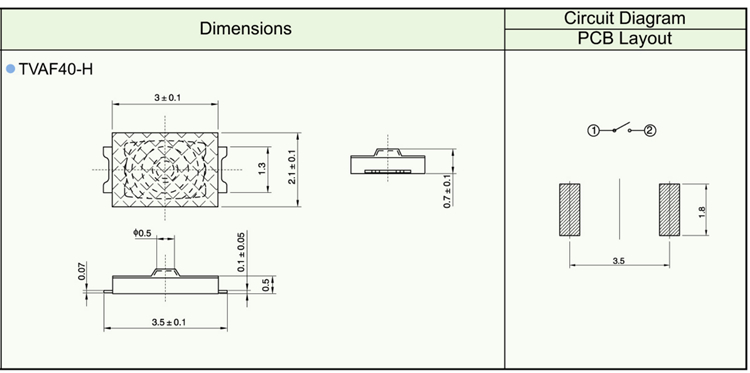

Size: 3x2mm

Travel:  0.13±0.05mm

Operation Force: 160gf;250gf;









SPECIFICATIONS

Size: 3.7X3.7mm

Travel:  0.15±0.05mm

Operation Force: 180gf;250gf;







SPECIFICATIONS

Size: 3.6X4.7mm

Travel:  0.25±0.1mm

Operation Force: 180gf;250gf













SPECIFICATIONS

Size: 2.5X3.5mm

Travel:  0.25±0.1mm

Operation Force: 160gf;250gf;320gf;400gf
