Createn Straight button tact switches

Createn Straight button tact switches

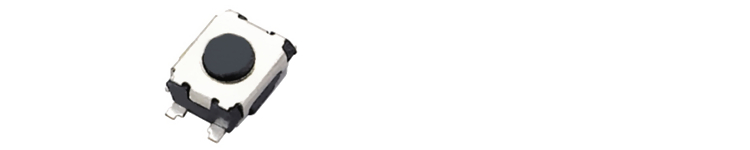

Tact Switch - Mini Type A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section.The switch is used to supply input signal to actuate a device or equipment.

Inquiry Now

Tact Switches

SPECIFICATIONS

Feature: Vertical Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C



Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.



Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices








SPECIFICATIONS

Size: 3.5x3mm

Travel:  0.15±0.1mm

Operation Force: 180gf;250gf











SPECIFICATIONS

Size: 3.3x3.3mm

Travel:  0.2±0.1mm

Operation Force: 90gf;160gf;180gf;250gf;









SPECIFICATIONS

Size: 2.9X3.9mm

Travel:  0.13±0.05mm

Operation Force: 90gf;120gf;180gf;250gf










SPECIFICATIONS

Size: 3.2X4.2mm

Travel:  0.2±0.1mm

Operation Force: 180gf;250gf;400gf







SPECIFICATIONS

Size: 3.5X4.7mm

Travel:  0.25±0.1mm

Operation Force: 90gf;180gf;250gf













SPECIFICATIONS

Size: 0.85 Height

Travel:  0.2±0.1mm

Operation Force: 90gf;160gf;180gf;250gf
