Createn N-Type Small Hole Base Ultra-Small Waterproof Microswitch, Arc Handle, Soldering Terminal, Rubber Sealed, Dustproof, for Industrial and Automotive Applications

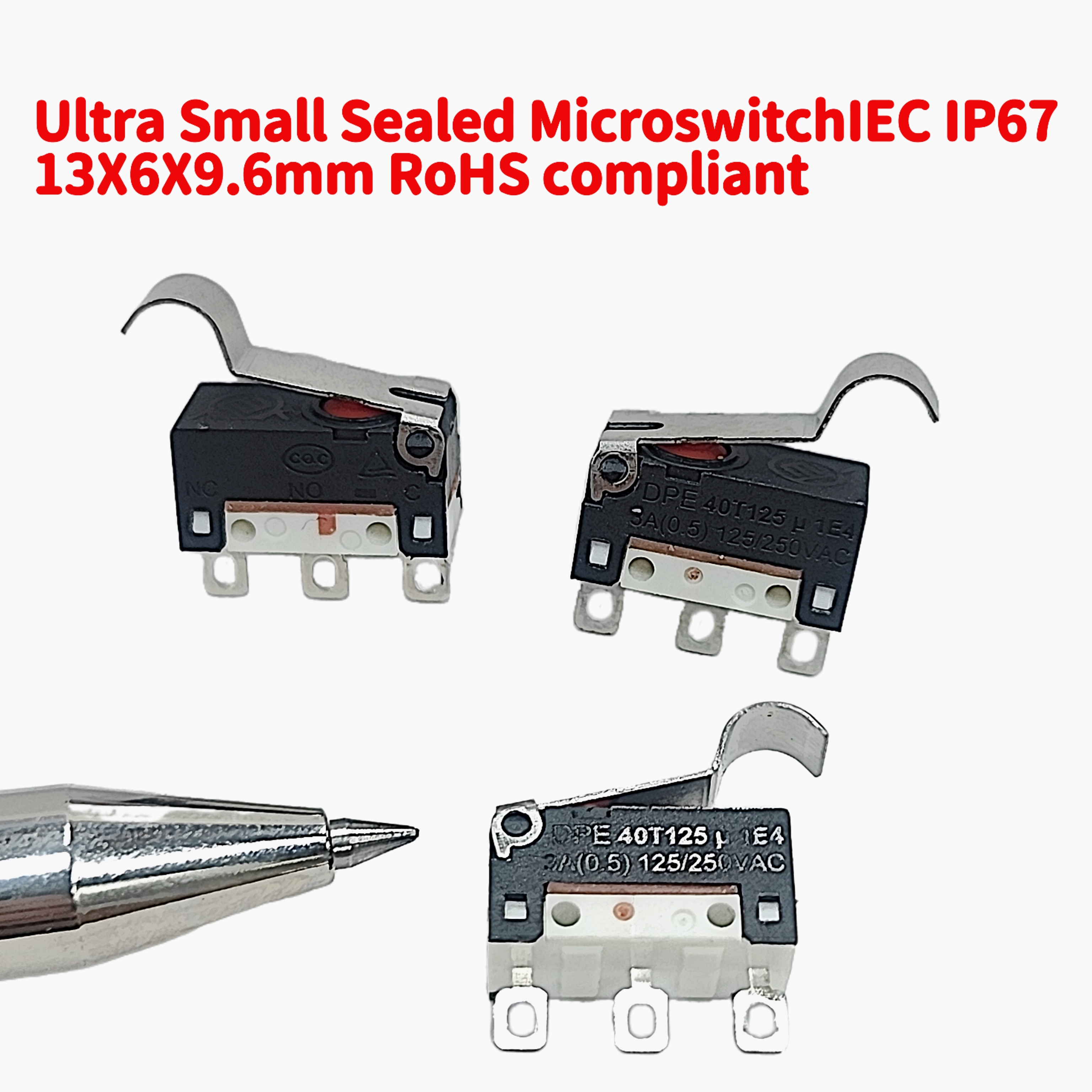

Ultra Small Sealed Microswitch Arc handle small hole base welding wire terminal

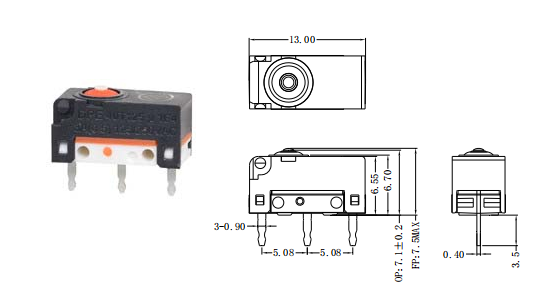

13X6X9.6（mm）Dustproof and waterproof
Fast switching, long life, excellent tactility
RoHS compliant
Contact point: Silver alloy 1.2mm
Contact resistance: 100 mΩ MAX
Allowable operating frequency: mechanical action 60 times/min, Electrical life 20 times/min
Insulation resistance: more than 100MΩ D500V
Mechanical life: 300,000 times
Electrical life: 10,000 times
Ambient temperature:-40°C to +85℃ 60%RH or less(no ice condensation)
Ambient humidity:<85%RH at +40°C
Resistance to soldering heat:255+5℃ 5s
Protection grade: IP67
Weight: about 0.8g
