6*6 tact switches

Tact Switches

SPECIFICATIONS

Feature: Horizontal Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C



Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.



Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices

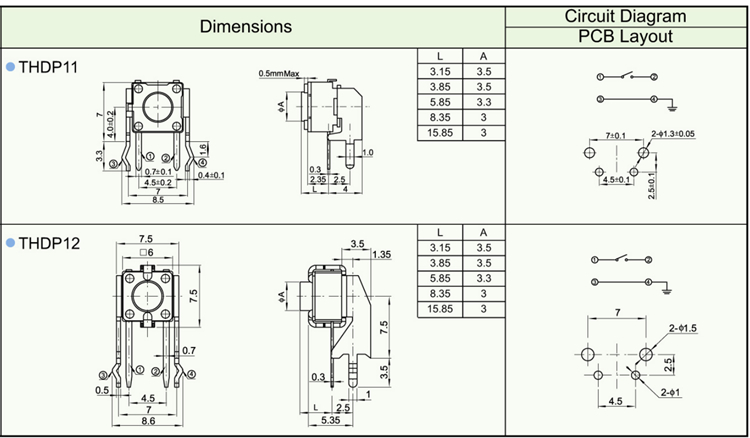

SPECIFICATIONS

Size: 6x6mm

Travel:  0.15±0.1mm

Operation Force: 180gf;250gf









SPECIFICATIONS

Size: 6x6mm

Travel:  0.25±0.1mm

Operation Force: 70gf;90gf;130gf;160gf;180gf;250gf;320gf;400gf









SPECIFICATIONS

Size: 6X6mm

Travel:  0.25±0.1mm

Operation Force: 90gf;180gf;250gf








SPECIFICATIONS

Size: 6X6mm

Travel:  0.25±0.1mm

Operation Force: 180gf;250gf








SPECIFICATIONS

Size: 6X6mm

Travel:  0.2±0.1mm

Operation Force: 90gf;160gf;250gf
